Building a Custom Fume Evacuator for My Messy Desk Setup
As a maker, I’ve accumulated quite a collection of tools and equipment in my office - from a Glowforge laser cutter tucked under my desk to a frequent need for soldering, gold leafing, and other adhesive-heavy processes on my desktop. While I love the creative freedom these tools provide, the fumes and particulates they generate can quickly become overwhelming, both in terms of air quality and the lingering odors.
To address this challenge, I decided to design and build a custom fume evacuator that could effectively capture and extract the various emissions from my workspace. The key requirements were:
- Accommodate the Glowforge: Since my laser cutter resides under the desk, I needed a solution that could pull air from that lower area, rather than just the desktop surface.
- Versatile Capture: With a wide range of activities happening on my desk, from soldering to adhesive work, I wanted the evacuator to be able to draw air from multiple locations as needed.
- Minimal Desktop Footprint: As a maker, every inch of workspace is precious, so I wanted a design that would minimize the footprint on my desk.

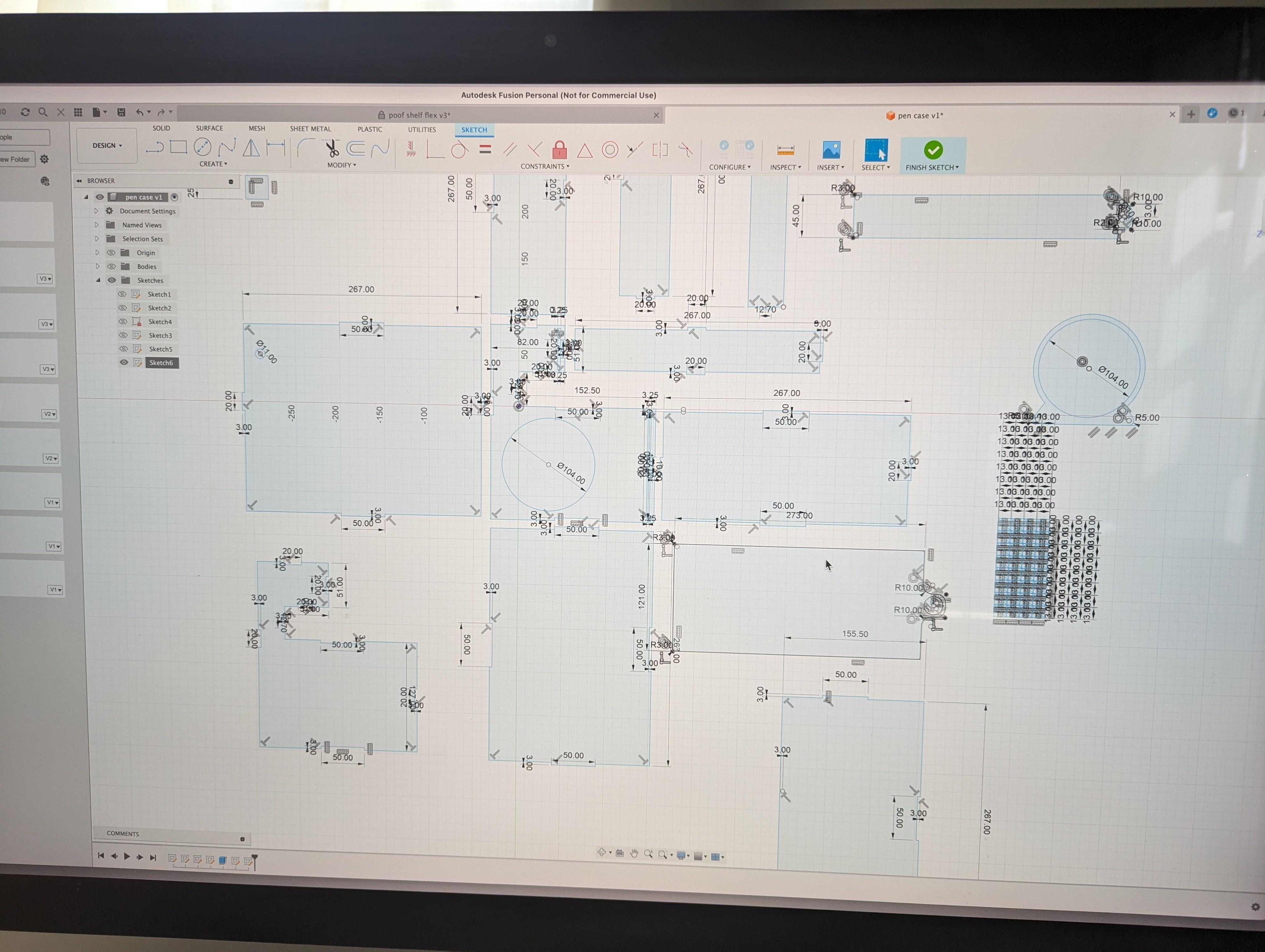

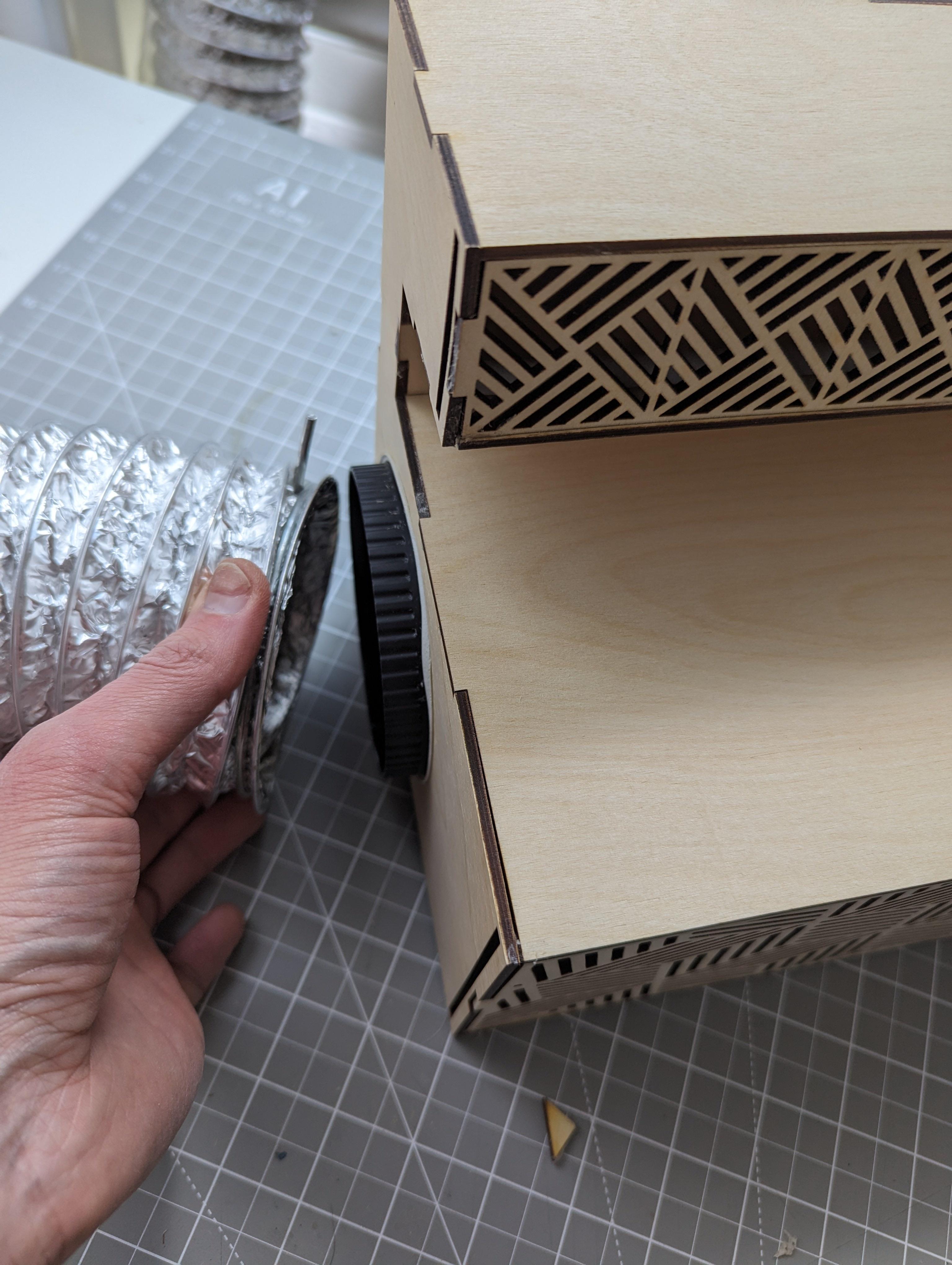

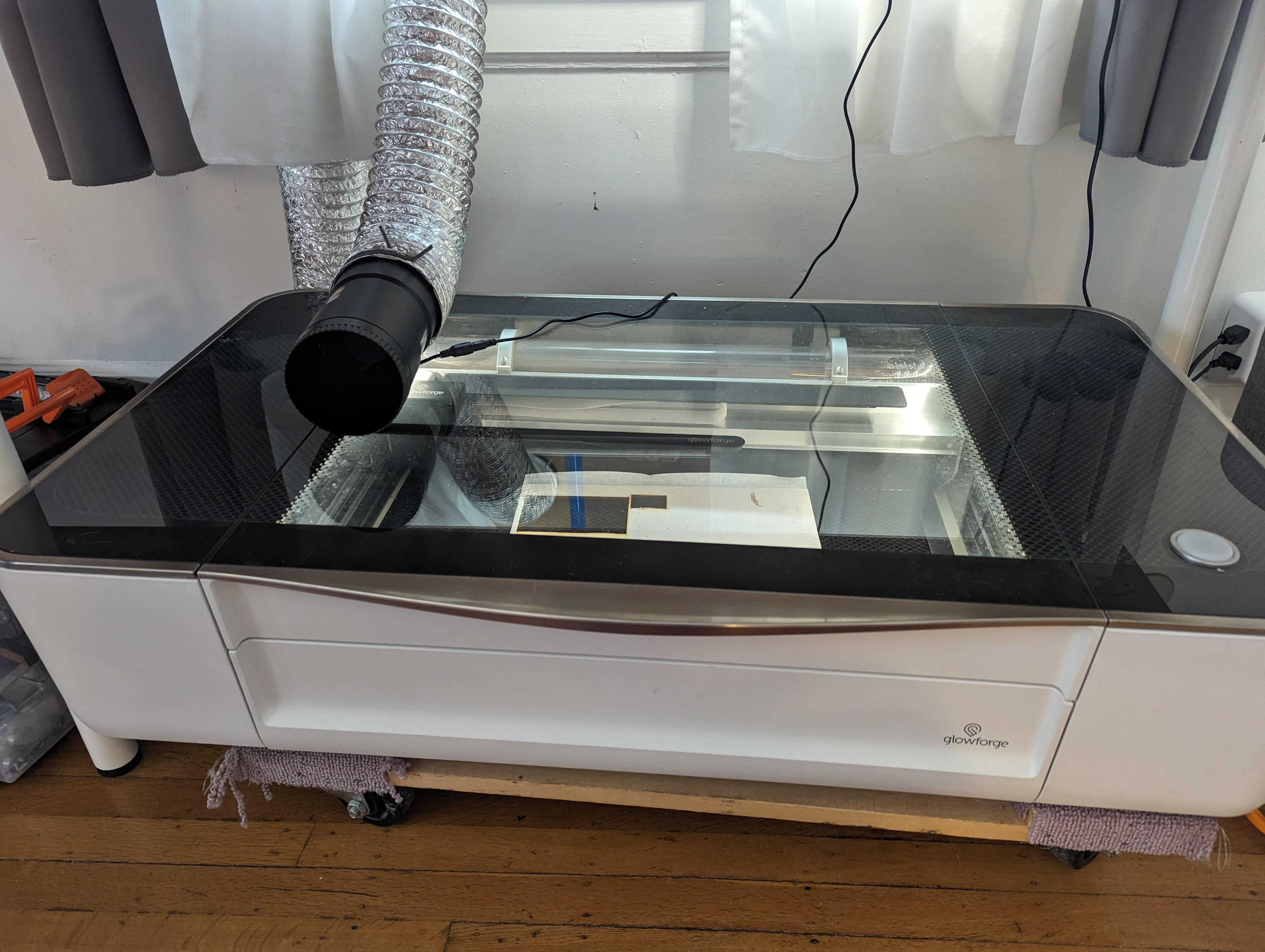

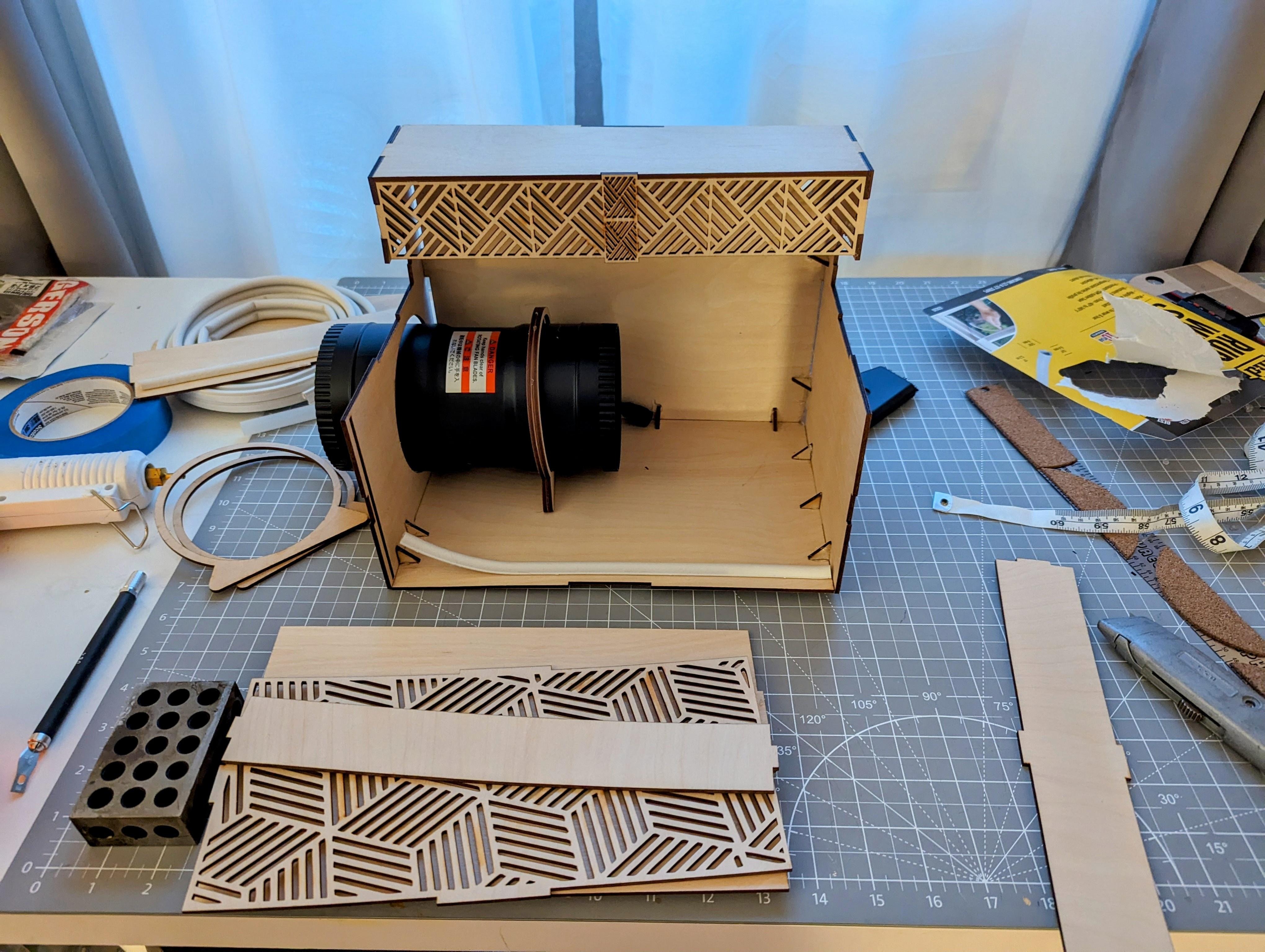

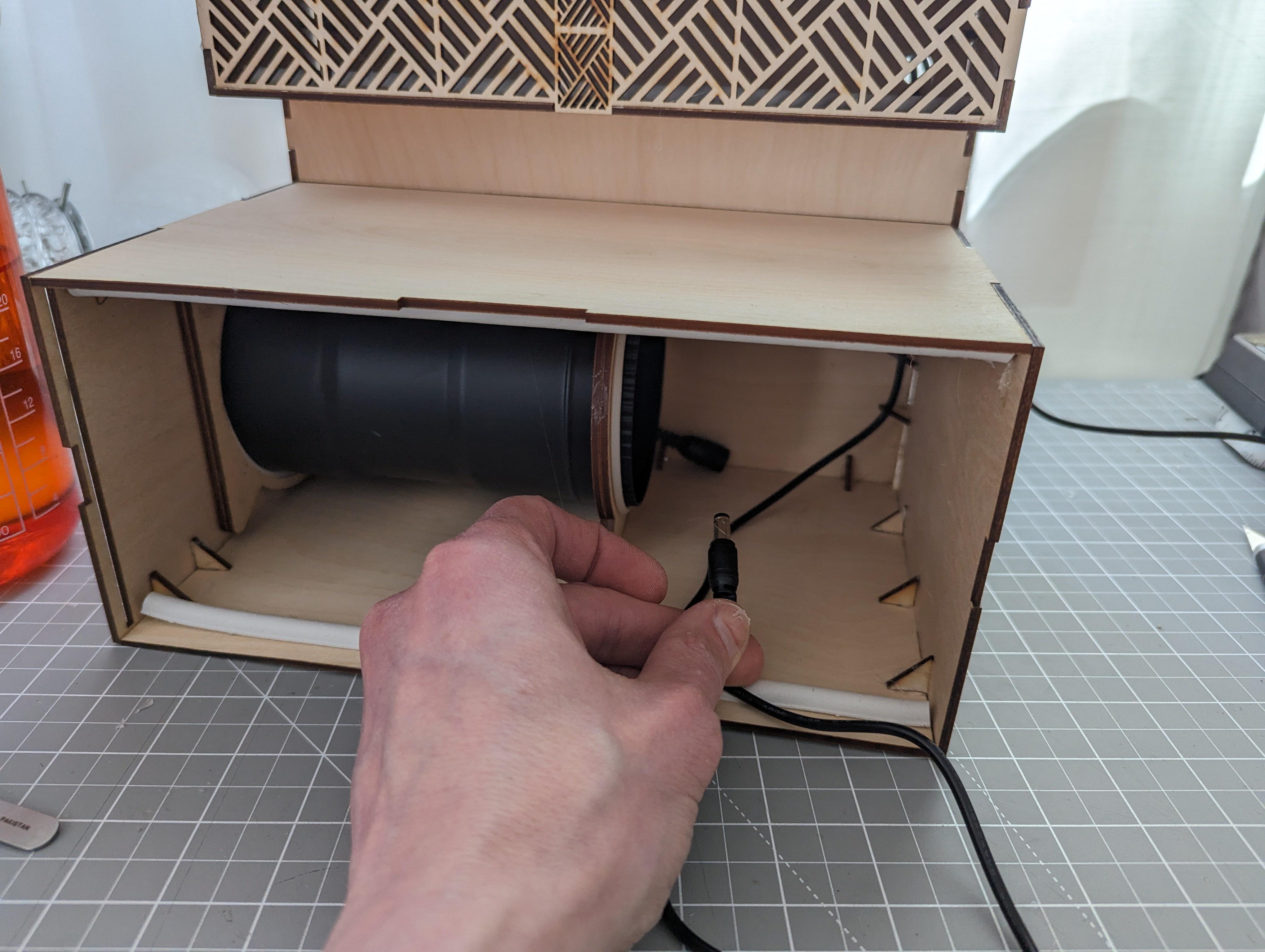

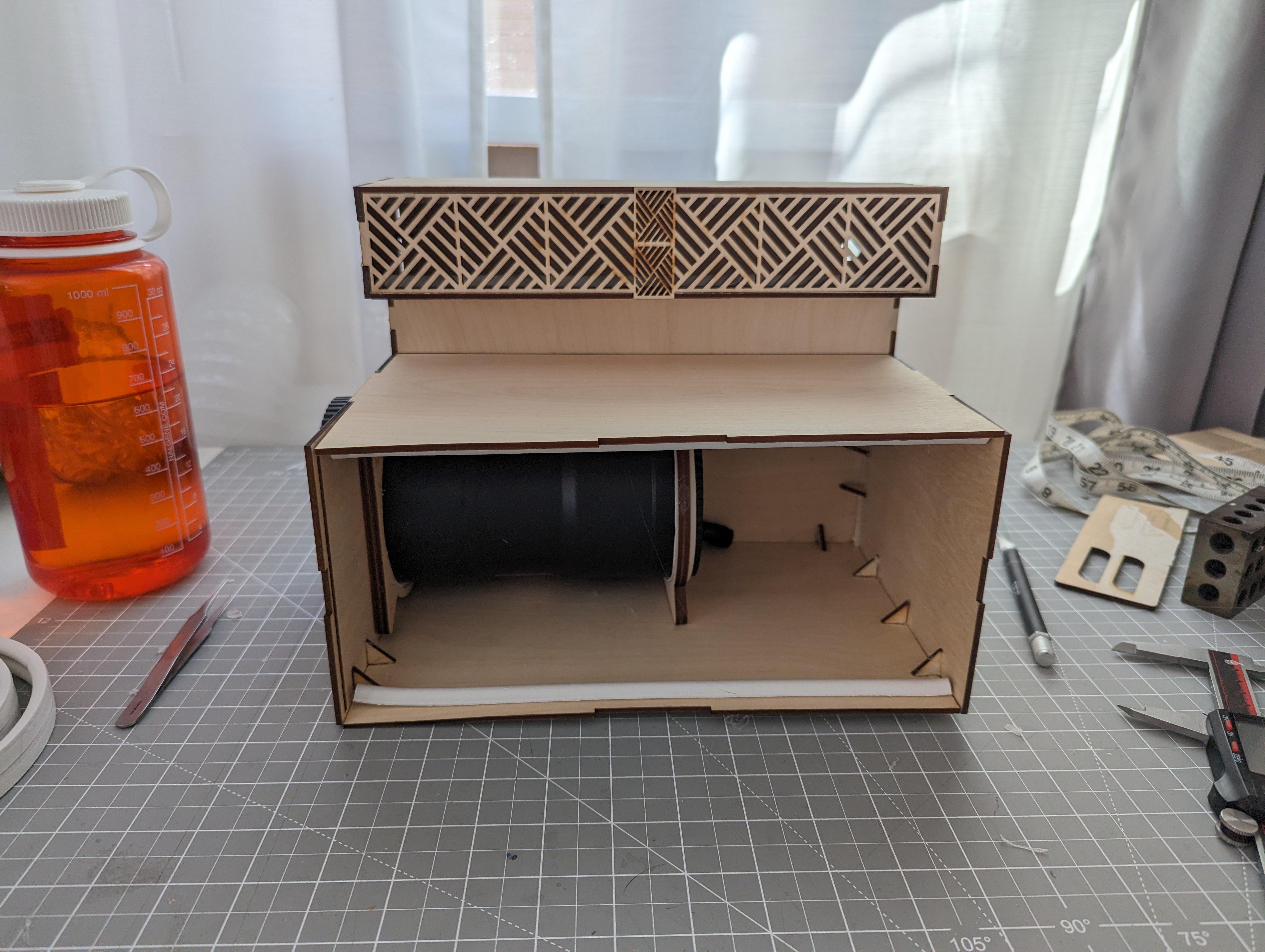

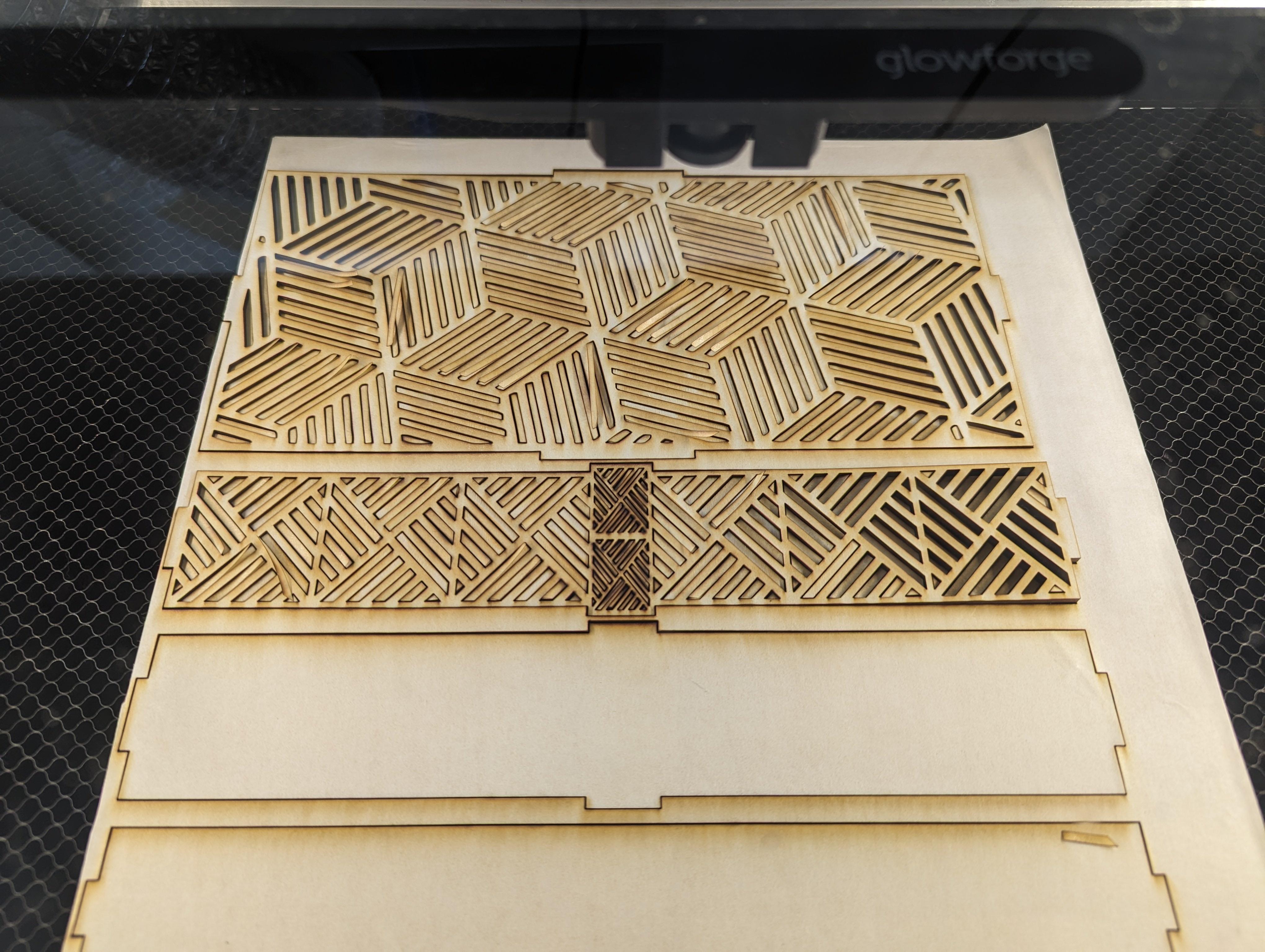

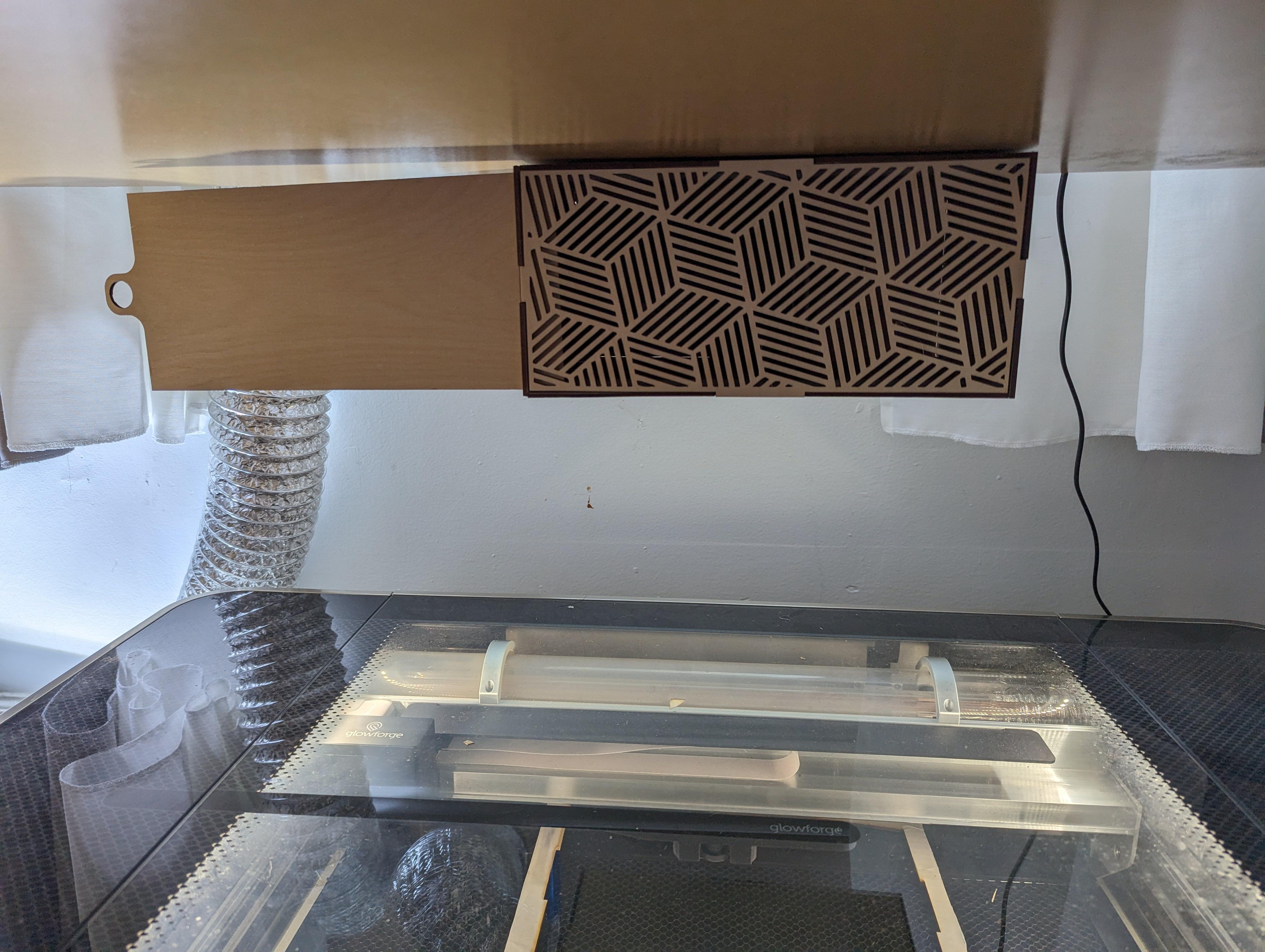

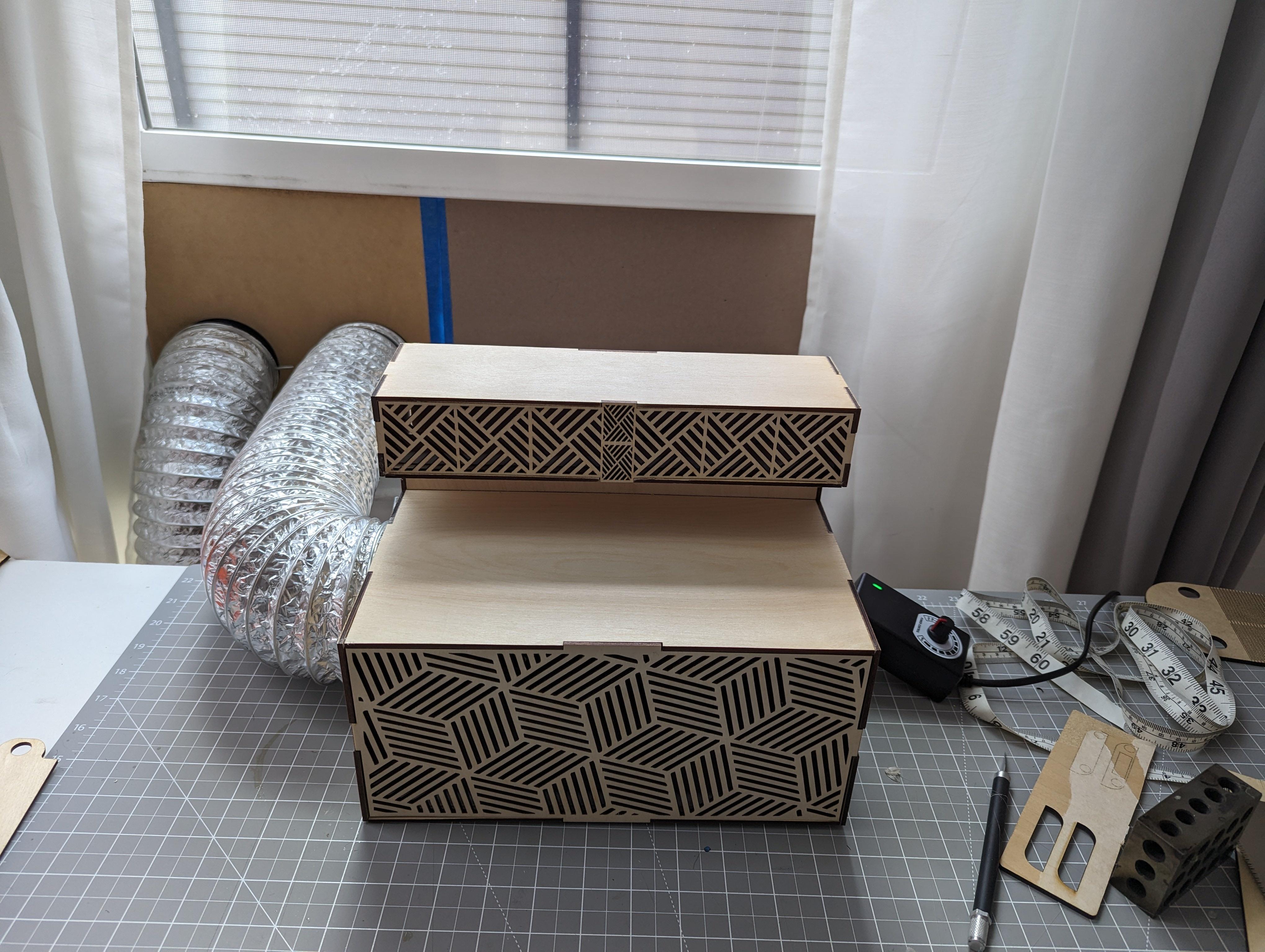

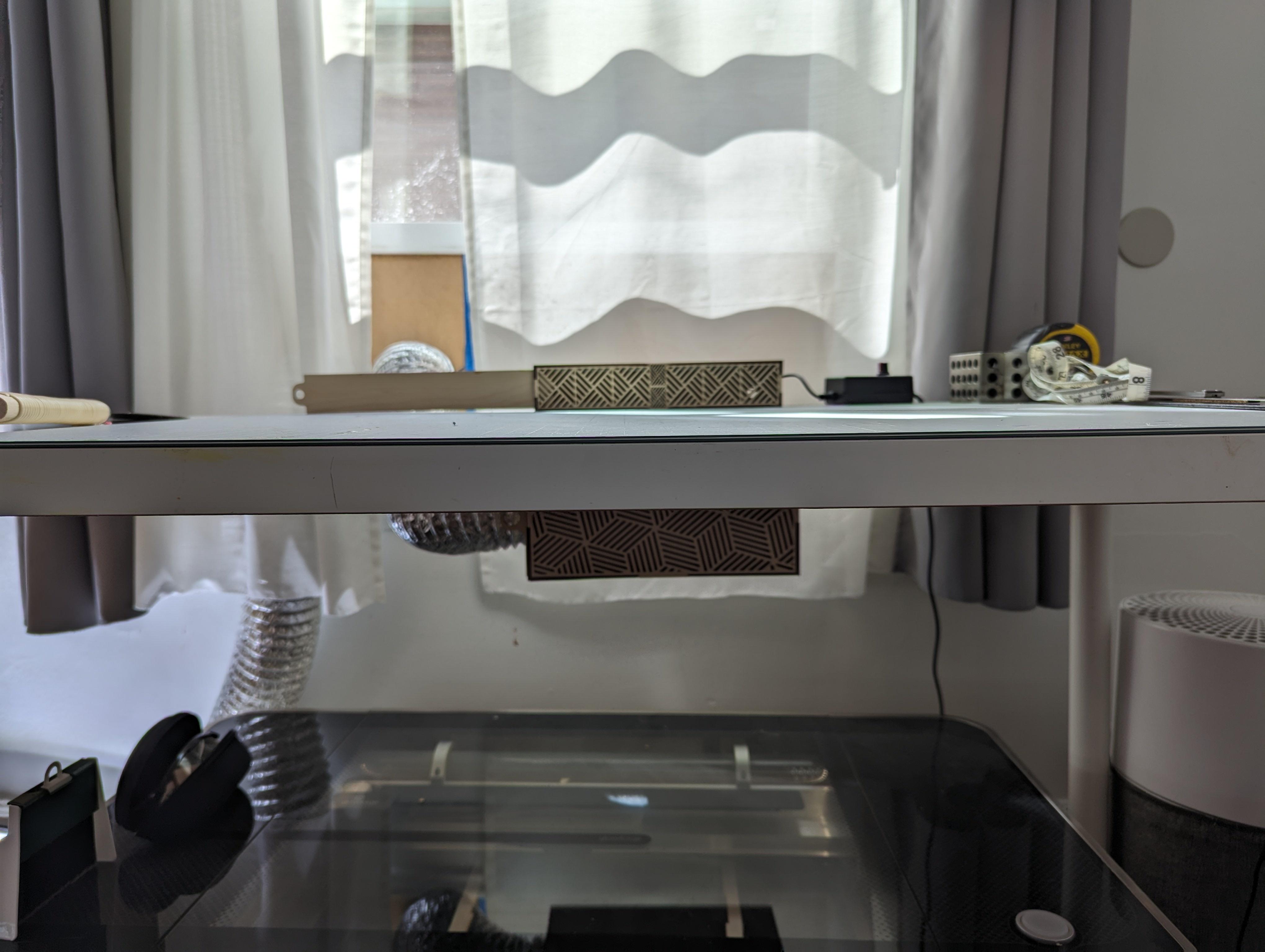

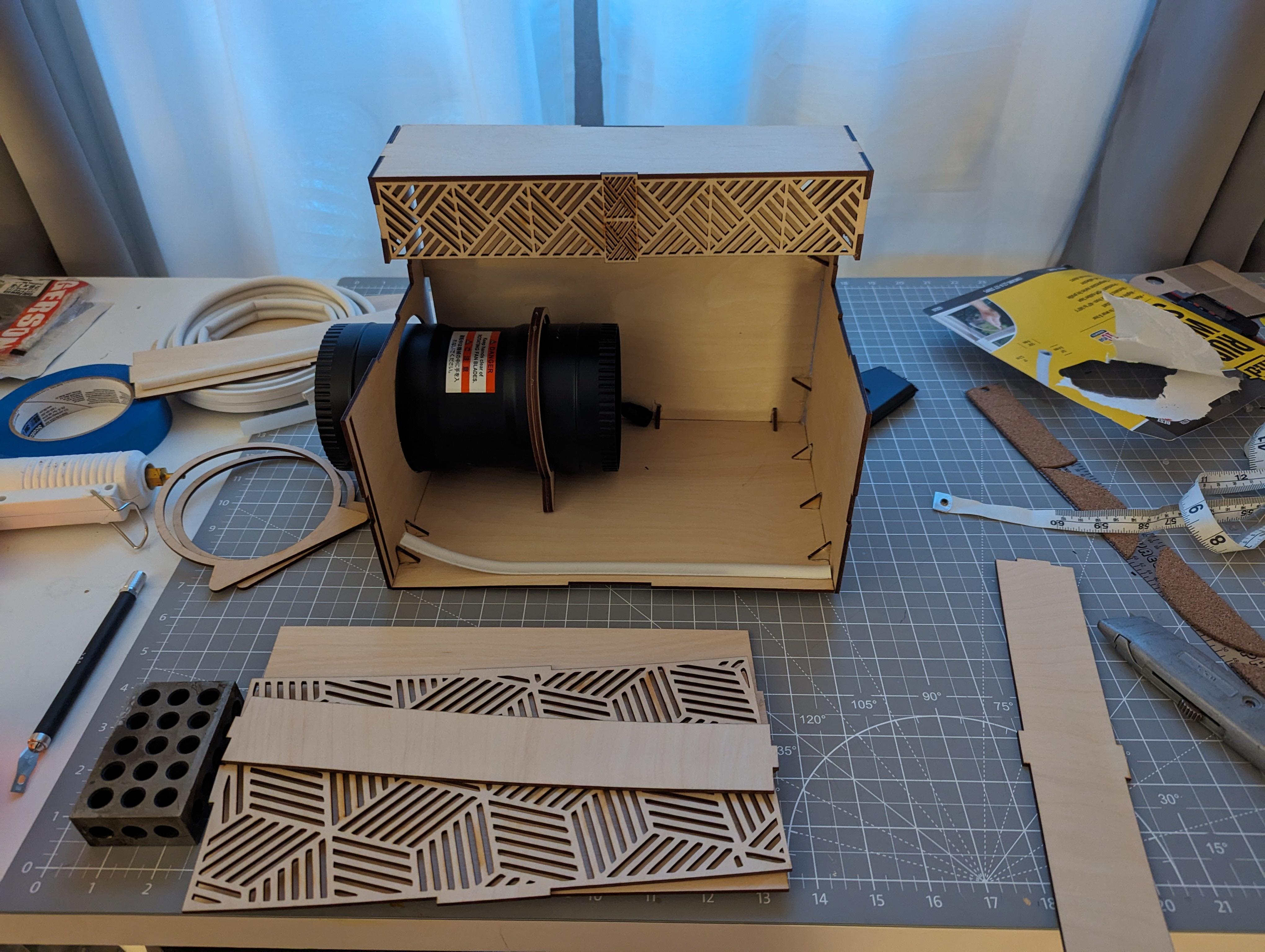

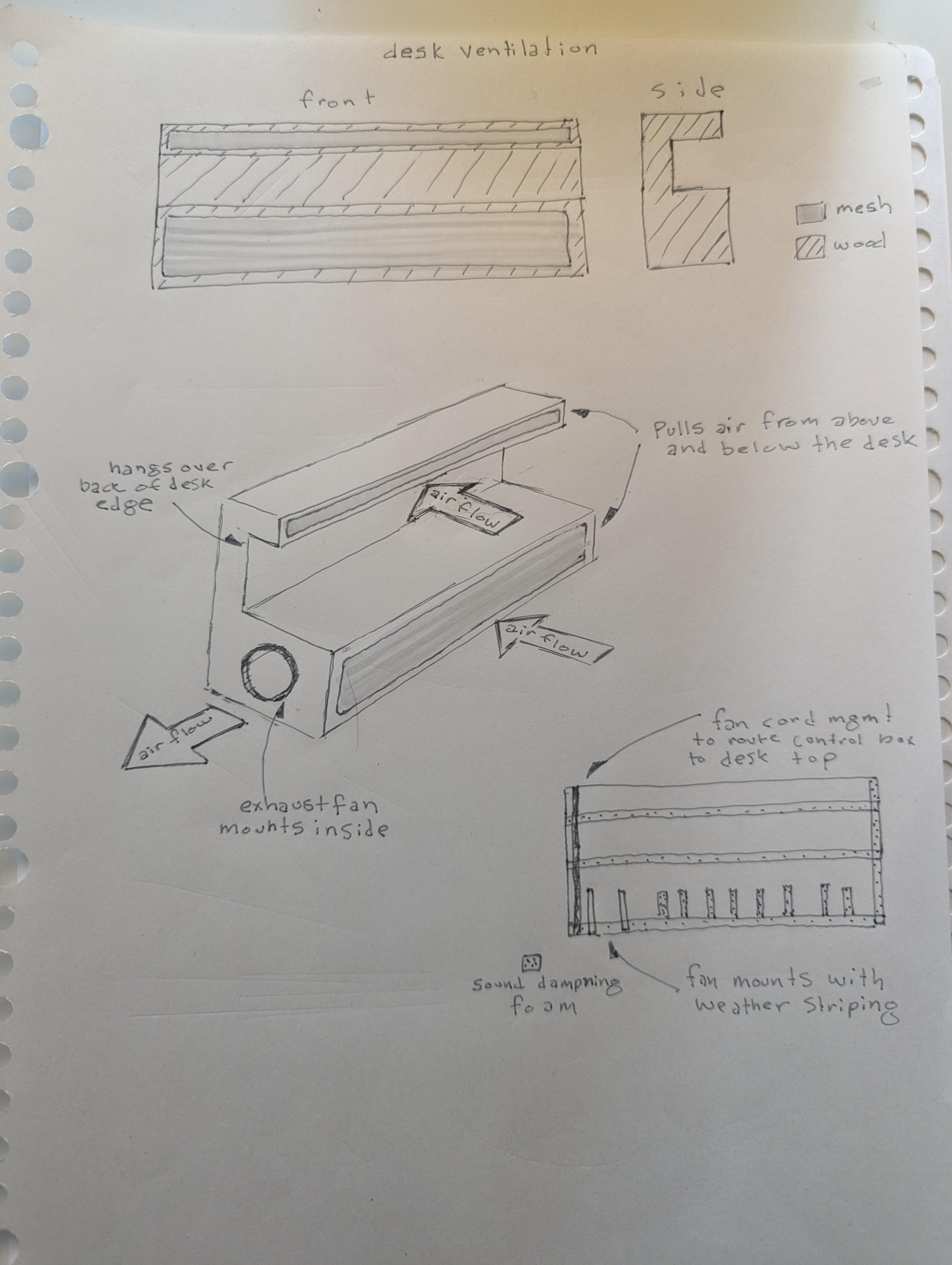

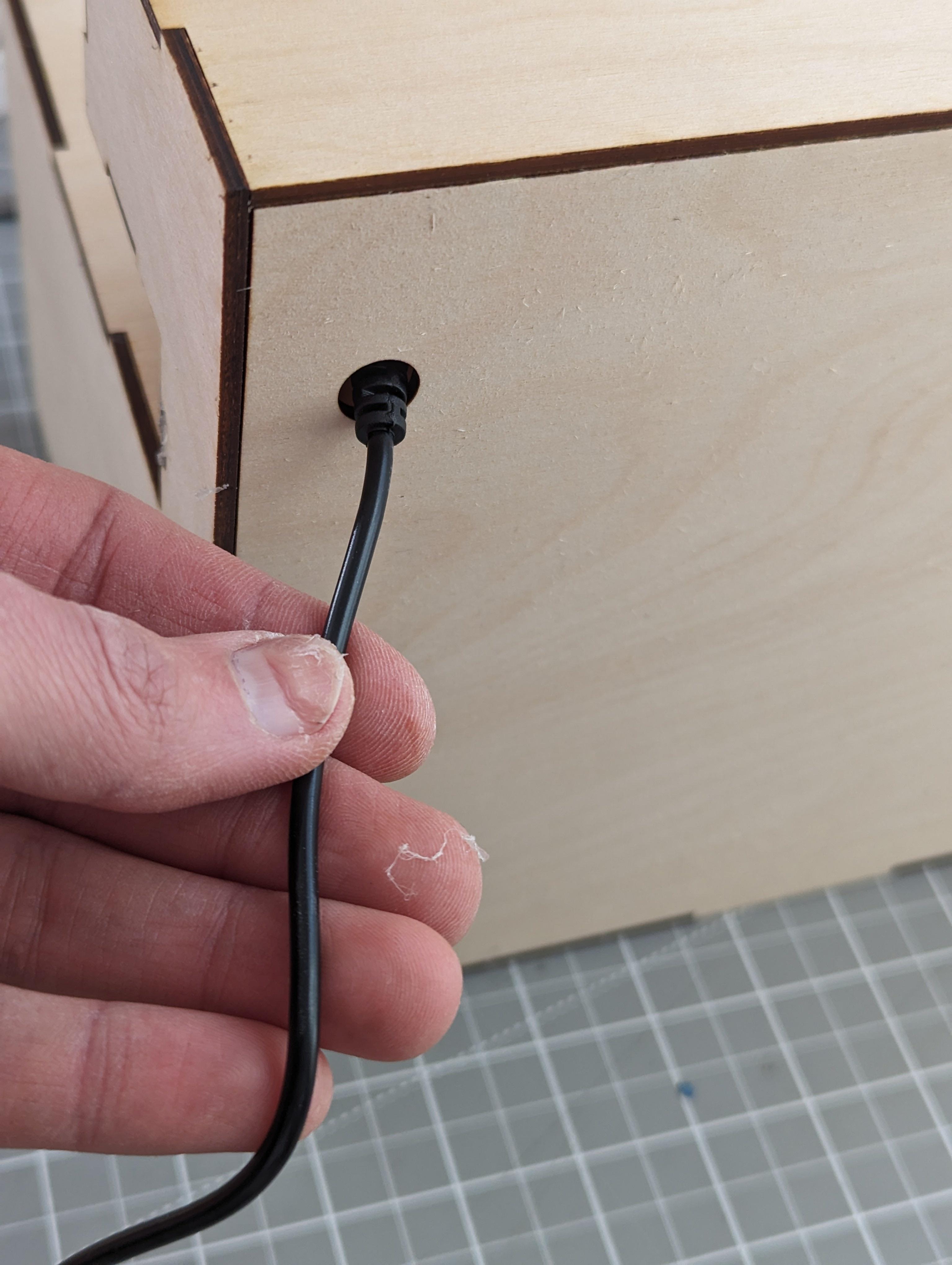

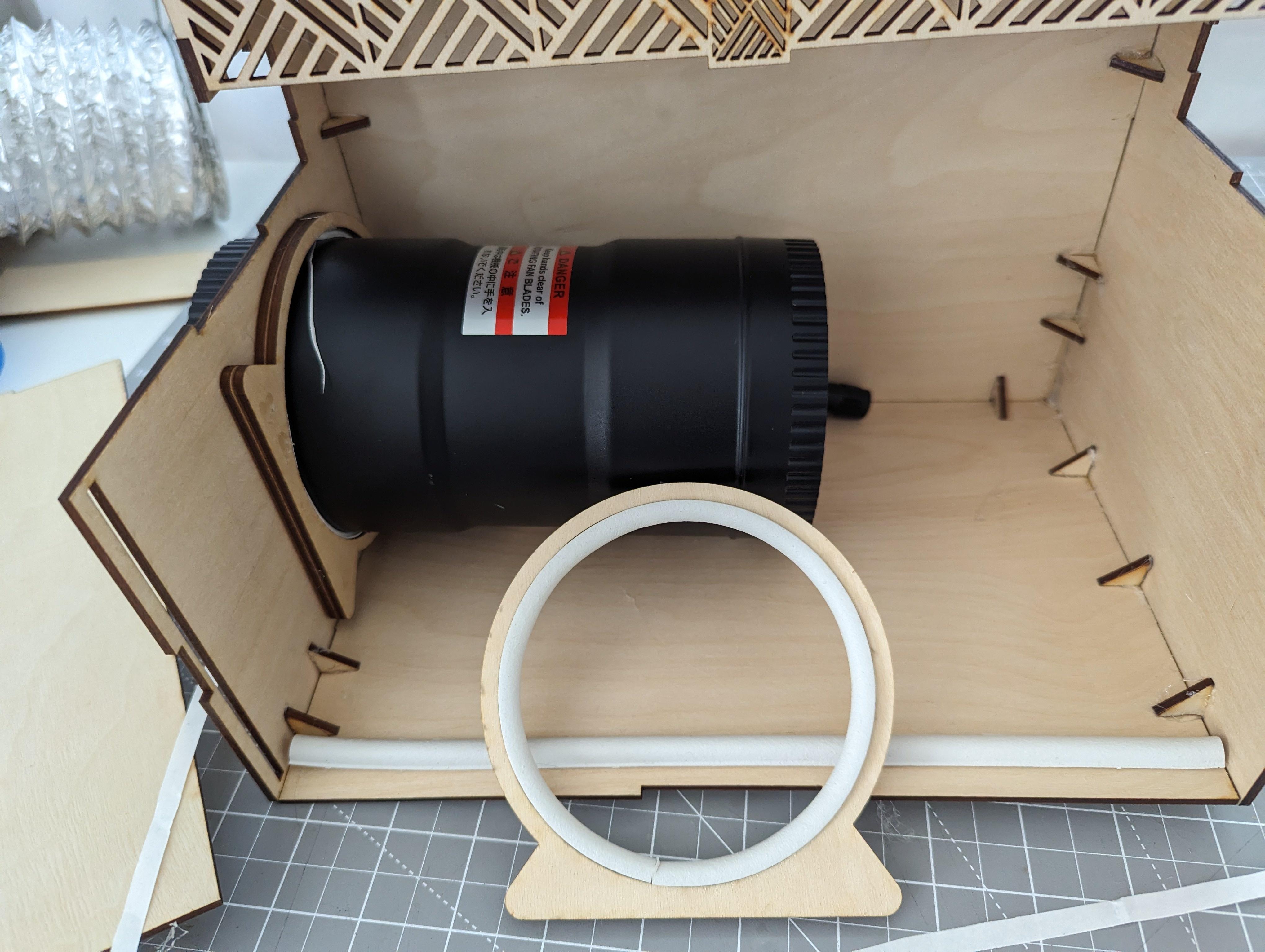

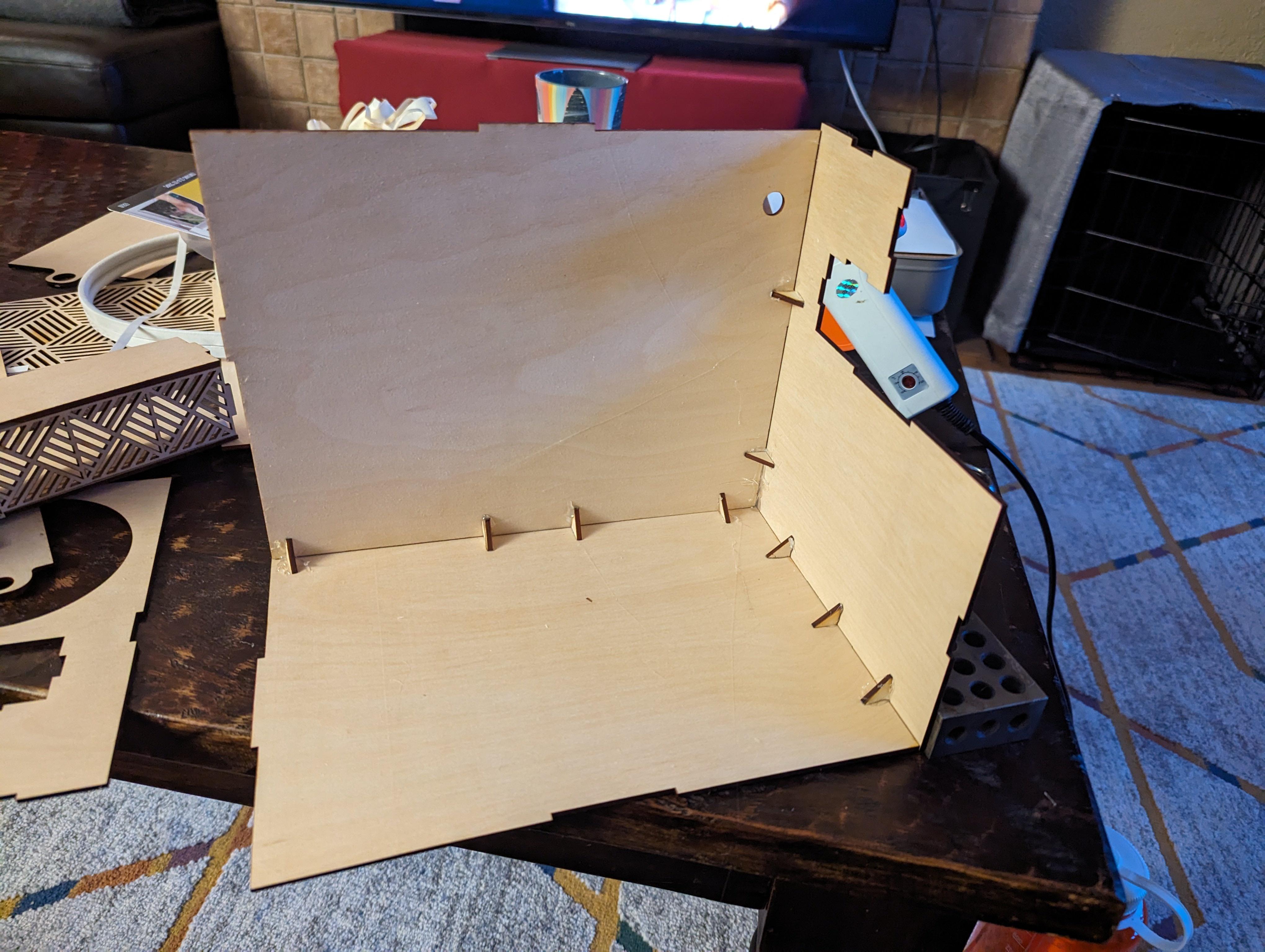

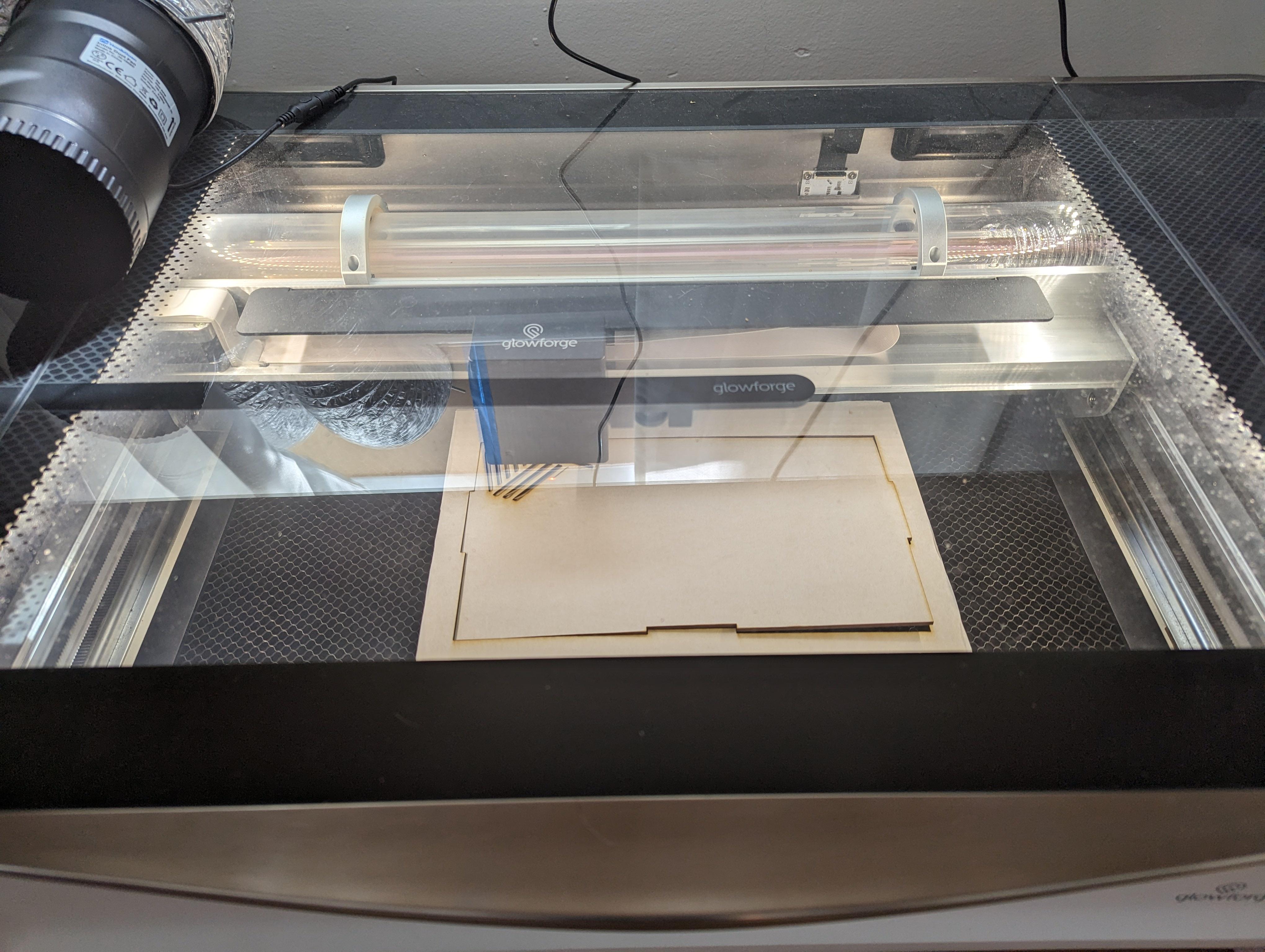

To bring this vision to life, I turned to an in-line ventilation and integrated it into a custom-built, “C-shaped” enclosure that clamps over the edge of my desk. This arrangement allows me to easily control the air intake locations by using sliding doors on each section of the evacuator.
The overall design features a compact, modular structure that can be easily reconfigured to suit my evolving needs. By strategically positioning the air intake points, I can effectively capture the fumes and particulates from my laser cutter, soldering station, and other messy desktop activities, while maintaining a clean and organized workspace.

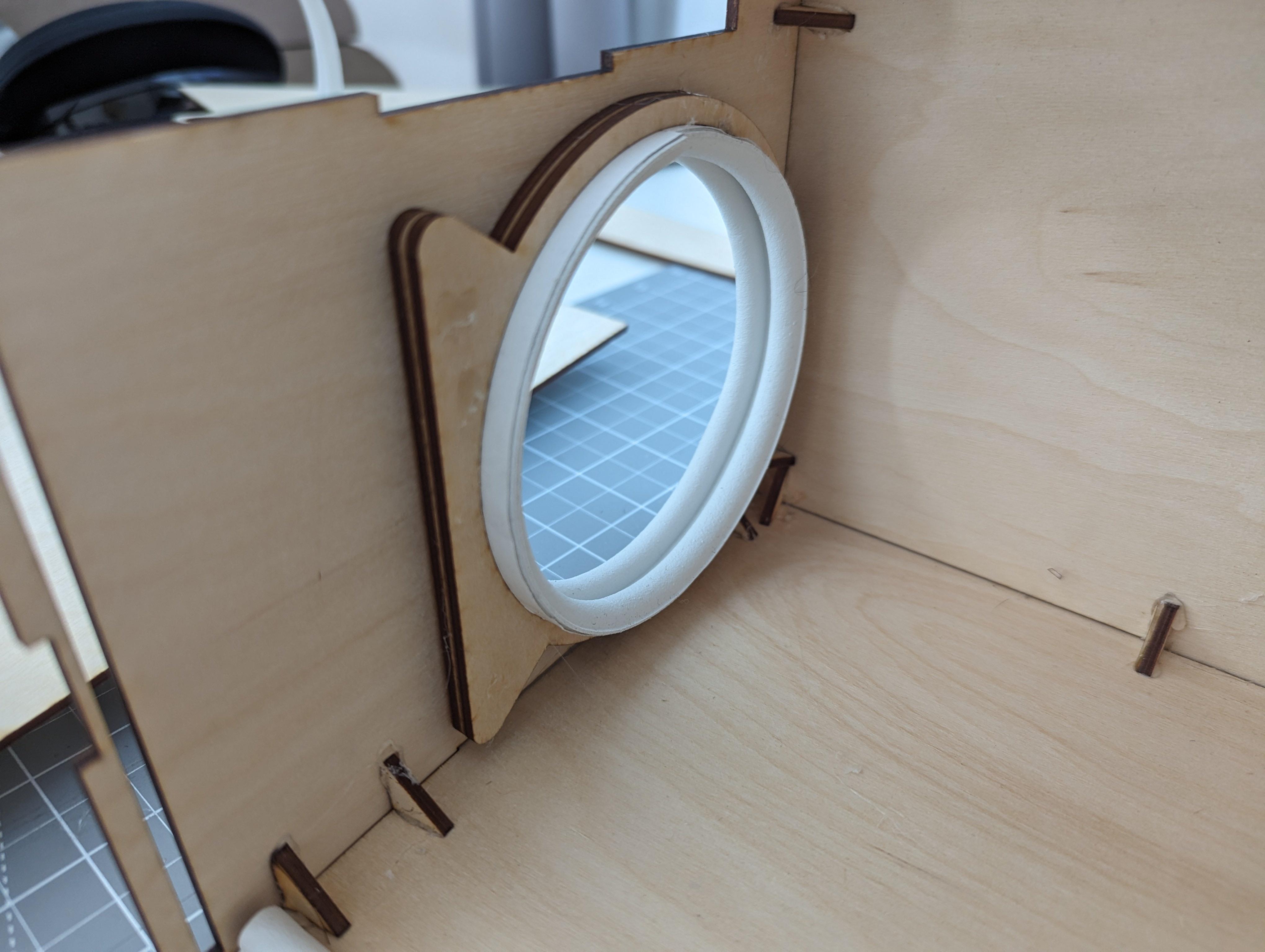

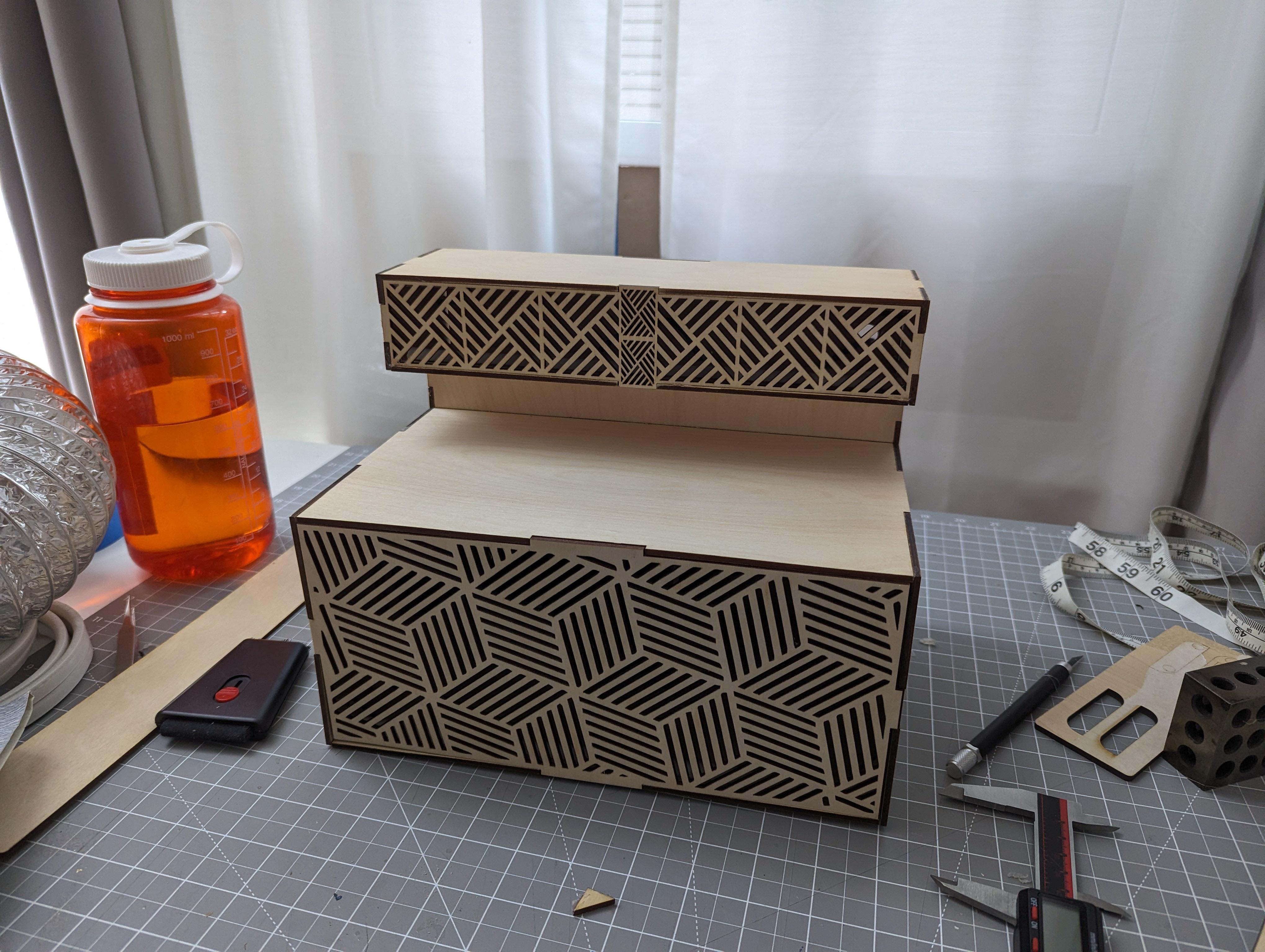

One of the key challenges I faced was ensuring the evacuator’s compatibility with the existing ventilation system for my 3D printers and laser cutters. After some careful planning and experimentation, I was able to seamlessly integrate the fume evacuator into the broader ventilation setup, creating a comprehensive air management solution for my entire office.

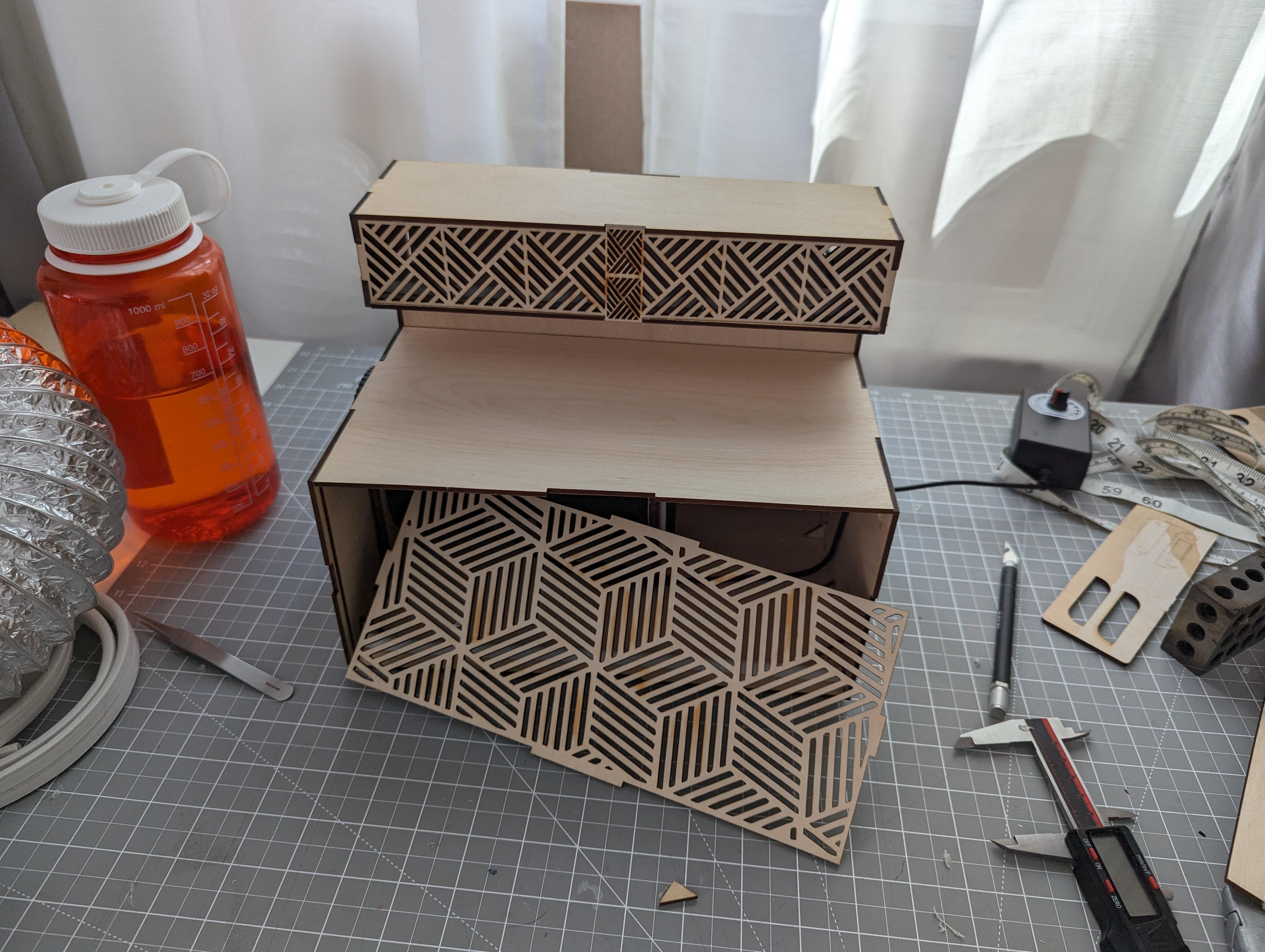

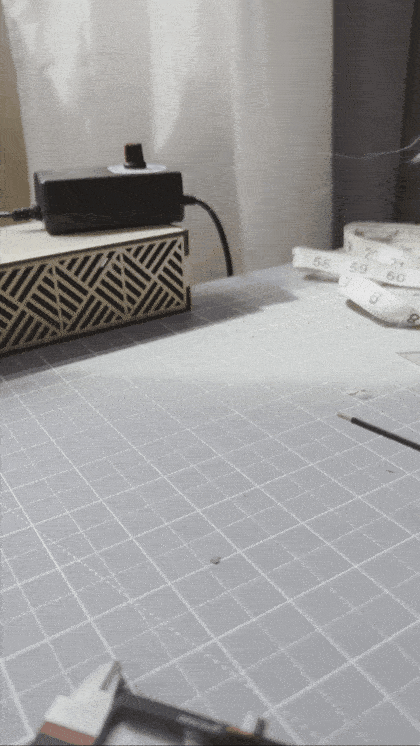

Through this project, I’ve not only solved the issue of poor air quality and persistent odors, but I’ve also added a touch of personalization and style to my workspace. The decorative grilles and sliding doors give the evacuator a polished, professional appearance that fits right in with the rest of my maker-friendly office.
Overall, this custom-built fume evacuator has been a game-changer for my productivity and comfort. By taking the time to design a solution that addresses the unique requirements of my workspace, I’ve created a functional and visually appealing tool that helps me maintain a clean, safe, and inspiring working environment.
